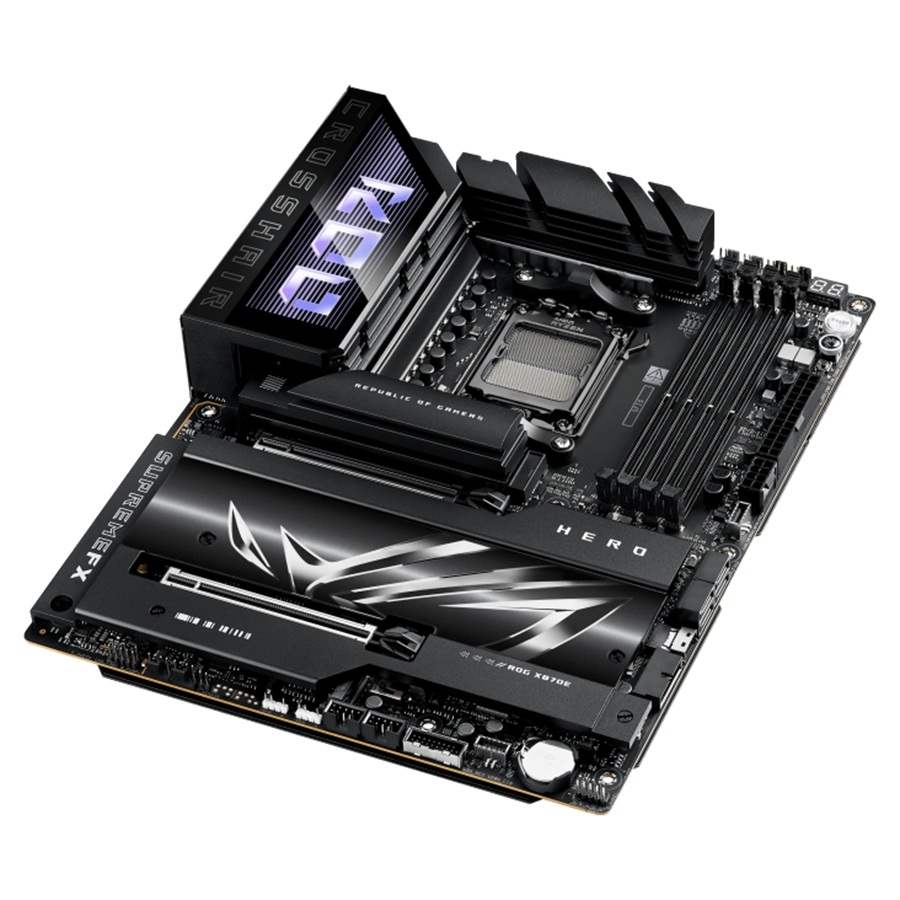

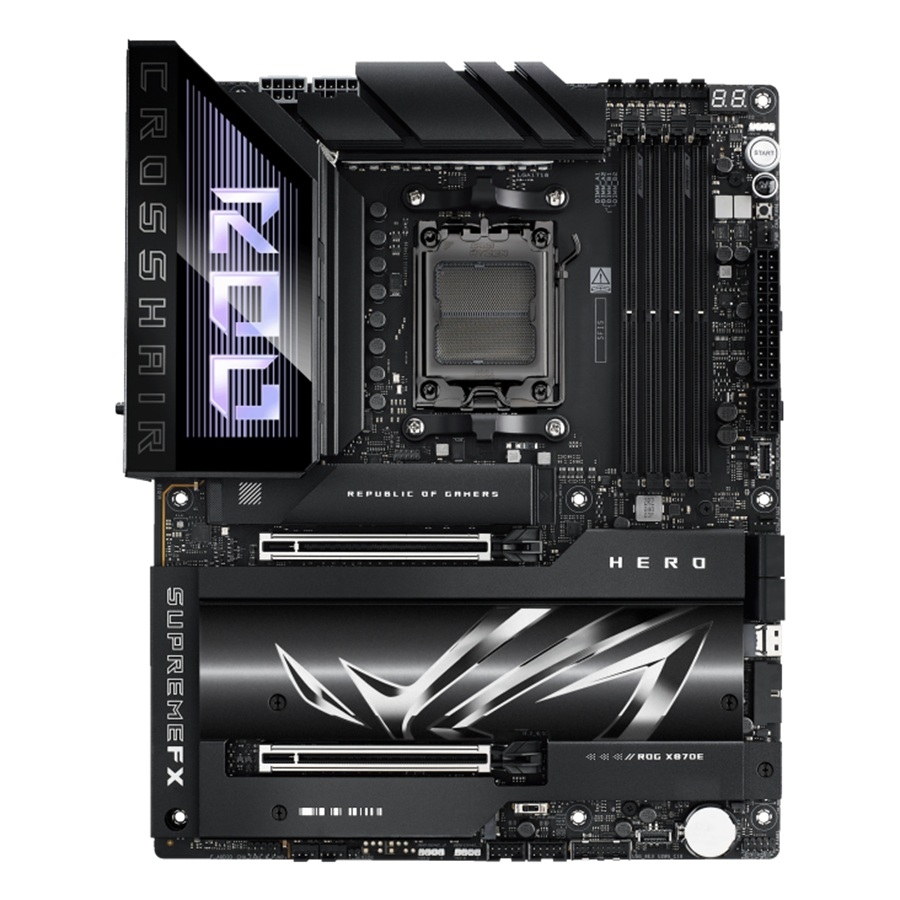

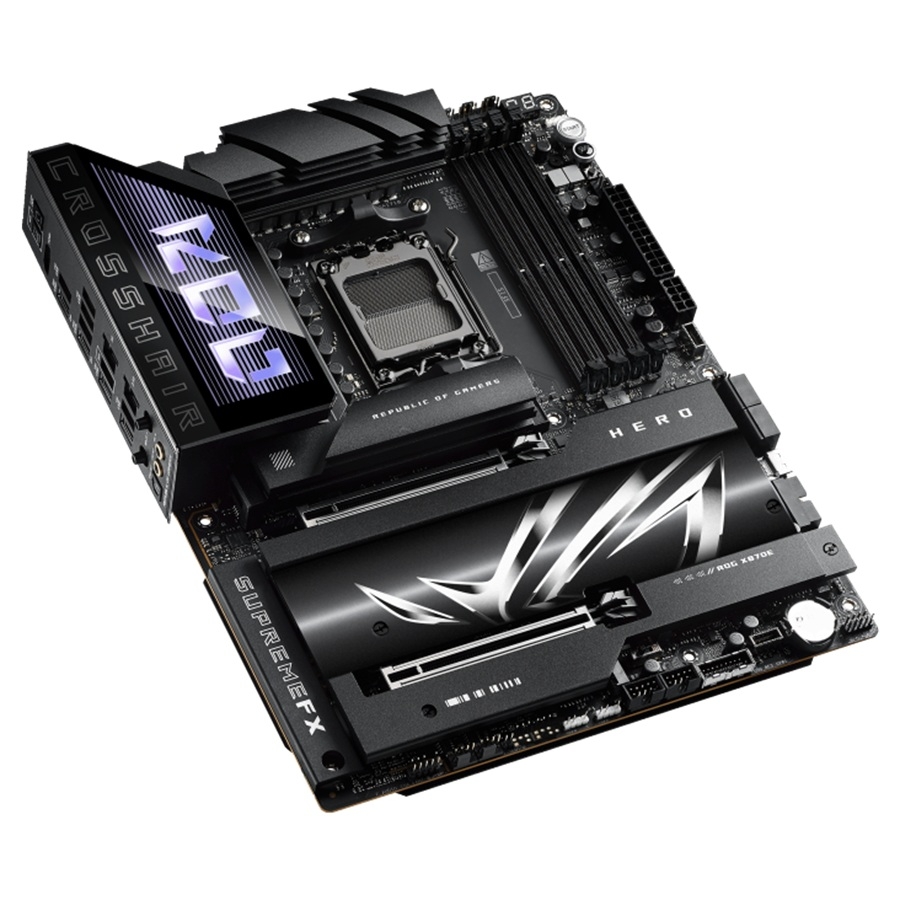

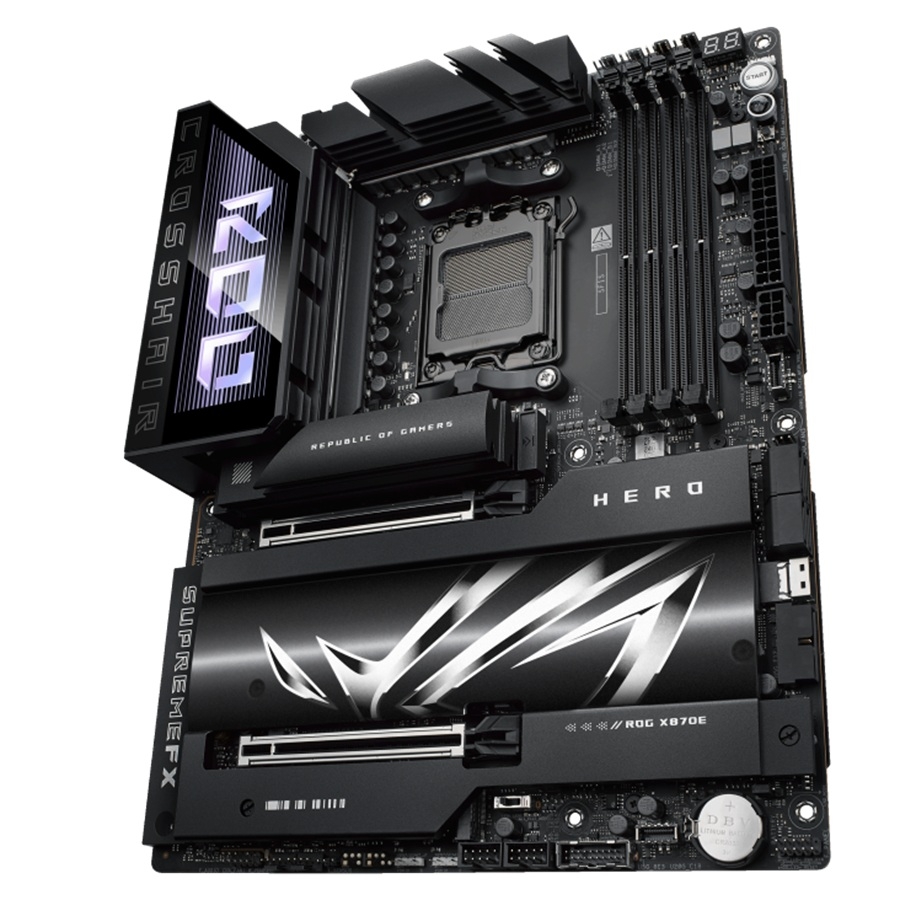

MODEL ROG CROSSHAIR X870E HEROCPUAMD SOCKET AM5 FOR AMD RYZEN 9000 & 8000 & 7000 SERIES DESKTOP PROCESSORS** REFER TO HTTPS://WWW.ASUS.COM/SUPPORT/DOWNLOAD
CENTER/ FOR CPU SUPPORT LIST.CHIPSETAMD X870EMEMORIA4 X DIMM SLOTS, MAX.192GB, DDR5 SUPPORTS UP TO8200+MT/S(OC) WITH RYZEN 9000 SERIES PROCESSORS,8600+MT/S(OC) WITH RYZEN 8000 SERIES PROCESSORS,8000+MT/S(OC) WITH RYZEN 7000 SERIES PROCESSORS,ECC AND NON
ECC, UN
BUFFERED MEMORY*DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS AMD EXTENDED PROFILES FOR OVERCLOCKING (EXPO)NITROPATH DRAM TECHNOLOGYASUS ENHANCED MEMORY PROFILE (AEMP)* SUPPORTED MEMORY TYPES, DATA RATE (SPEED), AND NUMBER OF DRAM MODULES VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION PLEASE REFER TO CPU/MEMORY SUPPORT LIST UNDER THE SUPPORT TAB OF PRODUCT INFORMATION SITE OR VISIT HTTPS://WWW.ASUS.COM/SUPPORT/DOWNLOAD
CENTER/.* NON
ECC, UN
BUFFERED DDR5 MEMORY SUPPORTS ON
DIE ECC FUNCTION.GRÁFICA1 X HDMI PORT*2 X USB4® (40GBPS) PORTS SUPPORT USB TYPE
C® DISPLAY OUTPUTS**GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO AMD CPU SPECIFICATIONS.VGA RESOLUTION SUPPORT DEPENDS ON PROCESSORS OR GRAPHIC CARDS RESOLUTION.*SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI 2.1.**SUPPORTS MAX. 4K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4AEXPANSION SLOTSAMD RYZEN 9000 & 7000 SERIES DESKTOP PROCESSORS*2 X PCIE 5.0 X16 SLOTS WITH Q
RELEASE SLIM (SUPPORTS X16 OR X8/X8** OR X8/X4/X4 MODES***)** WHEN YOU USE BOTH PCIEX16_1 AND PCIEX16_2, PCIEX16_1 AND PCIEX16_2 WILL RUN X8. *** WHEN M.2_3 ARE ENABLED, PCIEX16_1 WILL RUN X8, AND PCIEX16_2 WILL RUN X4.**** WHEN M.2_2 AND M.2_3 ARE ENABLED SIMULTANEOUSLY, PCIEX16_2 WILL BE DISABLED.AMD RYZEN 8700 & 8600 & 8400 SERIES DESKTOP PROCESSORS*2 X PCIE 4.0 X16 SLOTS WITH Q
RELEASE SLIM (ONLY SUPPORTS PCIEX16_1 & TOTAL BANDWIDTH FOR X8, PCIEX16_2 WILL BE DISABLED)AMD RYZEN 8500 & 8300 SERIES DESKTOP PROCESSORS*2 X PCIE 4.0 X16 SLOTS WITH Q
RELEASE SLIM (ONLY SUPPORTS PCIEX16_1 & TOTAL BANDWIDTH FOR X4, PCIEX16_2 WILL BE DISABLED)* PLEASE CHECK THE PCIE BIFURCATION TABLE ON THE SUPPORT SITE (HTTPS://WWW.ASUS.COM/SUPPORT/FAQ/1037507/).
TO ENSURE COMPATIBILITY OF THE DEVICE INSTALLED, PLEASE REFER TO HTTPS://WWW.ASUS.COM/SUPPORT/ FOR THE LIST OF SUPPORTEDSTORAGESUPPORTS 5 X M.2 SLOTS AND 1 X SLIMSAS CONNECTOR AND 4 X SATA 6GB/S PORTS*AMD RYZEN 9000 & 7000 SERIES DESKTOP PROCESSORSM.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 5.0 X4 MODE)M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 5.0 X4 MODE)M.2_3 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 5.0 X4 MODE)AMD RYZEN 8000 SERIES DESKTOP PROCESSORSM.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (NOT SUPPORTS)M.2_3 SLOT (KEY M), TYPE 2242/2260/2280 (NOT SUPPORTS)AMD X870E CHIPSETM.2_4 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)M.2_5 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 4.0 X4 MODE)SLIMSAS SLOT SUPPORTS PCIE 4.0 X4 MODE.4 X SATA 6GB/S PORTS**AMD RAIDXPERT2 TECHNOLOGY：RYZEN 7000 SERIES PROCESSORS SUPPORT PCIE & SATA RAID 0/1/10, RYZEN 8000 SERIES PROCESSORS SUPPORT PCIE RAID 0/1, RYZEN 9000 SERIES PROCESSORS SUPPORT PCIE RAID 0/1/5/10. ** WHEN M.2_2 AND M.2_3 ARE ENABLED SIMULTANEOUSLY, PCIEX16_2 WILL BE DISABLED. ***WHEN M.2_3 ARE ENABLED, PCIEX16_1 WILL RUN X8, AND PCIEX16_2 WILL RUN X4, M.2_2 WILL BE DISABLED.ETHERNET1 X INTEL® 2.5GB ETHERNET1 X REALTEK 5GB ETHERNETASUS LANGUARDWIRELESS & BLUETOOTHWI
FI 7*2X2 WI
FI 7 (802.11BE) SUPPORTS 2.4/5/6GHZ FREQUENCY BAND**SUPPORTS WI
FI 7 320MHZ BANDWIDTH, UP TO 6.5GBPS TRANSFER RATE.BLUETOOTH® V5.4****WI
FI FEATURES MAY VARY DEPENDING ON THE OPERATING SYSTEMFOR WINDOWS 11, WI
FI 7 WILL REQUIRE 24H2 OR LATER VERSION FOR FULL FUNCTIONS, WINDOWS 11 21H2/22H2/23H2 ONLY SUPPORT WI
FI 6E.FOR WINDOWS 10, PLEASE NOTE THAT NO DRIVER IS AVAILABLE, REFER TO THE WI
FI CHIPSET VENDORS WEBSITE FOR DETAILS.** WI
FI 6GHZ FREQUENCY BAND AND BANDWIDTH REGULATORY MAY VARY BETWEEN COUNTRIES.*** THE BLUETOOTH® VERSION MAY VARY, PLEASE REFER TO THE WI
FI MODULE MANUFACTURERS WEBSITE FOR THE LATEST SPECIFICATIONS.USBREAR USB (TOTAL 10 PORTS)2 X USB4® (40GBPS) PORTS (2 X USB TYPE
C®)8 X USB 10GBPS PORTS (6 X TYPE
A + 2 X USB TYPE
C®) FRONT USB (TOTAL 10 PORTS)1 X USB 20GBPS (SUPPORTS USB TYPE
C® WITH UP TO 60W PD/QC4+)*1 X USB 20GBPS CONNECTOR (SUPPORTS USB TYPE
C®)2 X USB 5GBPS HEADERS SUPPORT 4 ADDITIONAL USB 5GBPS PORTS2 X USB 2.0 HEADERS SUPPORT 4 ADDITIONAL USB 2.0 PORTSUSB TYPE
C® POWER DELIVERY OUTPUT: MAX. 5V/3A*USB TYPE
C® POWER DELIVERY OUTPUT: 5/9/15/20V MAX. 3A, PPS:3.321V MAX. 3AAUDIOROG SUPREMEFX 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC ALC4082*
IMPEDANCE SENSE FOR FRONT AND REAR HEADPHONE OUTPUTS
SUPPORTS: JACK
DETECTION, MULTI
STREAMING, FRONT PANEL MIC JACK
RETASKING
HIGH QUALITY 120 DB SNR STEREO PLAYBACK OUTPUT AND 110 DB SNR RECORDING INPUT
SUPPORTS UP TO 32
BIT/384 KHZ PLAYBACK ON FRONT PANELAUDIO FEATURES
SUPREMEFX SHIELDING TECHNOLOGY
ESS® ES9219 QUAD DAC
GOLD
PLATED AUDIO JACKS
REAR OPTICAL S/PDIF OUT PORT

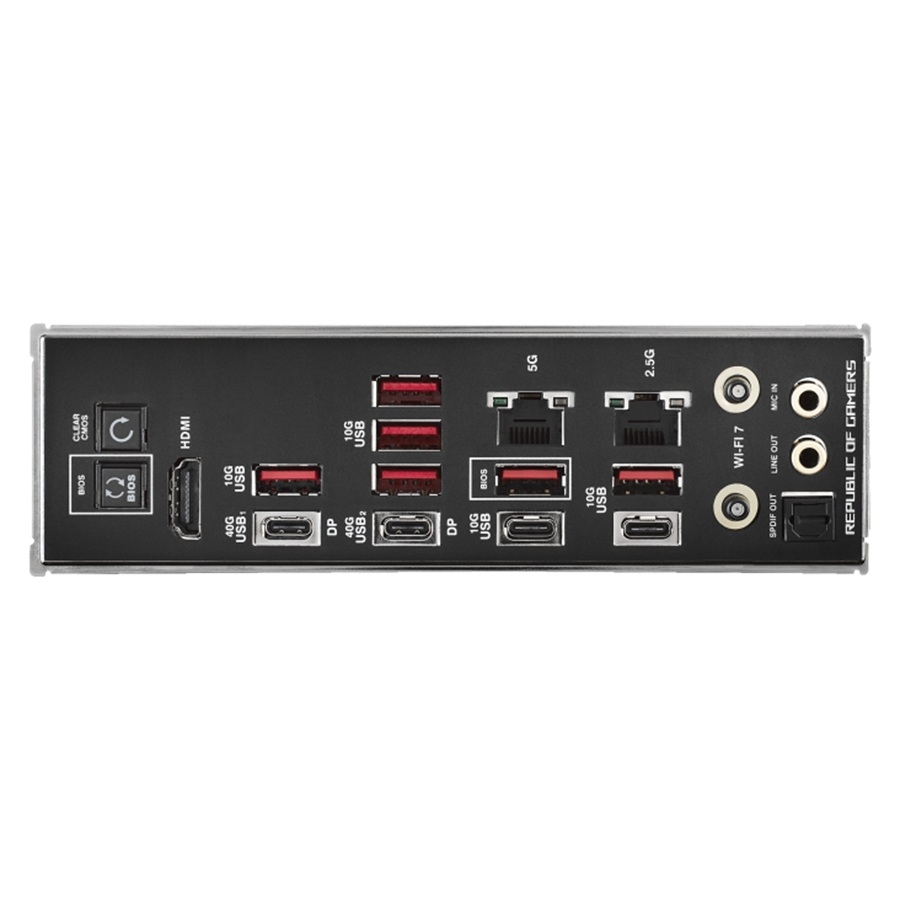

PREMIUM AUDIO CAPACITORS* A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT.** THE LINE OUT PORT ON THE REAR PANEL DOES NOT SUPPORT SPATIAL AUDIO. IF YOU WISH TO USE SPATIAL AUDIO, MAKE SURE TO CONNECT YOUR AUDIO OUTPUT DEVICE TO THE AUDIO JACK ON THE FRONT PANEL OF YOUR CHASSIS OR USE A USB INTERFACE AUDIO DEVICE.BACK PANEL I/O PORTS2 X USB4® (40GBPS) PORTS (2 X USB TYPE
C®)8 X USB 10GBPS PORTS (6 X TYPE
A + 2 X USB TYPE
C®) 1 X HDMI PORT1 X WI
FI MODULE1 X INTEL® 2.5GB ETHERNET PORT1 X REALTEK 5GB ETHERNET PORT2 X GOLD
PLATED AUDIO JACKS1 X OPTICAL S/PDIF OUT PORT1 X BIOS FLASHBACK BUTTON 1 X CLEAR CMOS BUTTONINTERNAL I/O CONNECTORSFAN AND COOLING RELATED 1 X 4
PIN CPU FAN HEADER1 X 4
PIN CPU OPT FAN HEADER1 X 4
PIN AIO PUMP HEADER4 X 4
PIN CHASSIS FAN HEADERS1 X W_PUMP+ HEADERPOWER RELATED 1 X 24
PIN MAIN POWER CONNECTOR2 X 8
PIN +12V CPU POWER CONNECTOR1 X 8
PIN PCIE POWER CONNECTORSTORAGE RELATED 5 X M.2 SLOTS (KEY M) 1 X SLIMSAS CONNECTOR 4 X SATA 6GB/S PORTSUSB 2 X USB 20GBPS CONNECTORS (SUPPORT USB TYPE
C® ) 2 X USB 5GBPS HEADERS SUPPORT 4 ADDITIONAL USB 5GBPS PORTS2 X USB 2.0 HEADERS SUPPORT 4 ADDITIONAL USB 2.0 PORTSMISCELLANEOUS3 X ADDRESSABLE GEN2 HEADERS1 X ALTERATION PCIE MODE SWITCH1 X FLEXKEY BUTTON 1 X FRONT PANEL AUDIO HEADER (F_AUDIO)1 X RETRY BUTTON1 X START BUTTON1 X 10
1 PIN SYSTEM PANEL HEADER1 X THERMAL SENSOR HEADER1 X LN2 MODE JUMPERSPECIAL FEATURES EXTREME OC KIT
FLEXKEY BUTTON
LN2 MODE
RETRY BUTTON
START BUTTONEXTREME ENGINE DIGI+
10K BLACK METALLIC CAPACITORS
MICROFINE ALLOY CHOKE ASUS Q
DESIGN
M.2 Q
LATCH
M.2 Q
RELEASE
M.2 Q
SLIDE
Q
RELEASE SLIM (WITH PCIE SAFESLOT)
Q
ANTENNA
Q
CODE
Q
CONNECTOR
Q
DASHBOARD
Q
LED (CPU [RED], DRAM [YELLOW], VGA [WHITE], BOOT DEVICE [YELLOW GREEN])
Q
SLOTASUS THERMAL SOLUTION
M.2 HEATSINK BACKPLATE
M.2 HEATSINK
VRM HEATSINK DESIGN
METAL BACKPLATEASUS EZ DIY
BACKPLATE
BIOS FLASHBACK BUTTON
CLEAR CMOS BUTTON
PROCOOL II
PRE
MOUNTED I/O SHIELD
SAFESLOT
SAFEDIMMAURA SYNC
ADDRESSABLE GEN2 HEADER(S)FRONT PANEL USB 20GBPS WITH QUICK CHARGE 4+ SUPPORT
SUPPORT: UP TO 60W FAST CHARGING AND USB WATTAGE WATCHER*
OUTPUT: 5/9/15/20V MAX. 3A, PPS:3.321V MAX. 3A
COMPATIBLE WITH PD3.0 AND PPS* TO SUPPORT 60W, PLEASE INSTALL THE POWER CABLE TO THE 8
PIN PCIE POWER CONNECTOR OR ELSE ONLY 27W WILL BE SUPPORTED.SOFTWARE FEATURESROG EXCLUSIVE SOFTWARE
ROG CPU
Z
DOLBY ATMOS
INTERNET SECURITY (1
YEAR FULL VERSION)
POLYMO LIGHTING II ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE
AIDA64 EXTREME (1 YEAR FULL VERSION)
AURA CREATOR
AURA SYNC
FAN XPERT 4 (WITH AI COOLING II)
GAMEFIRST
HWINFO
POWER SAVINGASUS DRIVERHUBASUS GLIDEXUSB WATTAGE WATCHERTURBOV CORE WINRAR (40 DAYS FREE TRIAL)ADOBE CREATIVE CLOUD (FREE TRIAL)UEFI BIOSAI OVERCLOCKING GUIDEASUS EZ DIY
ASUS CRASHFREE BIOS 3
ASUS EZ FLASH 3
ASUS UEFI BIOS EZ MODE

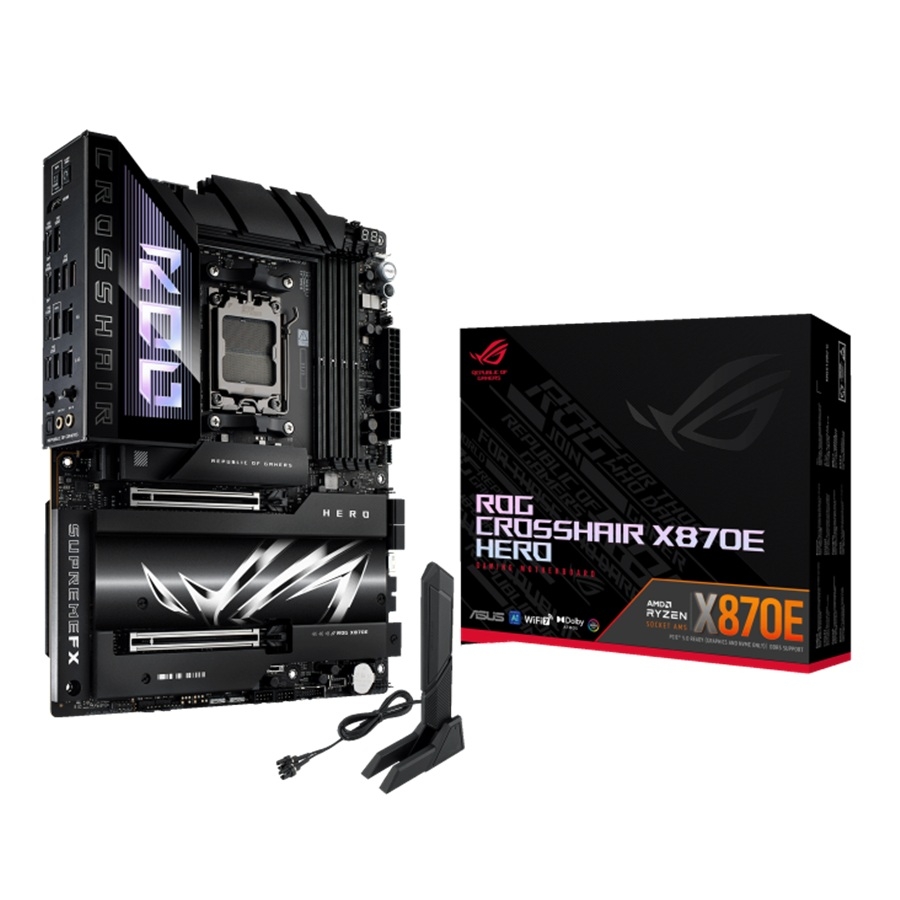

ASUS MYHOTKEYFLEXKEYBIOS256MB FLASH ROM, UEFI AMI BIOSMANAGEABILITYWOL BY PME, PXEACCESSORIES CABLES1 X ARGB RGB EXTENSION CABLE 4 X SATA 6GB/S CABLES MISCELLANEOUS1 X ASUS WIFI Q
ANTENNA1 X Q
CONNECTOR2 X M.2 Q
LATCH PACKAGE3 X M.2 Q
SLIDE PACKAGE5 X M.2 RUBBER PACKAGE1 X ROG STICKERS1 X ROG THANK YOU CARD1 X ROG BOTTLE OPENERINSTALLATION MEDIA1 X USB DRIVE WITH UTILITIES AND DRIVERS DOCUMENTATION1 X QUICK START GUIDEOPERATING SYSTEMWINDOWS® 11FORM FACTORATX FORM FACTOR12 INCH X 9.6 INCH ( 30.5 CM X 24.4 CM )
